Inpixon nanoANQ Chirp PCB

RTLS-Infrastructure Anchor With Unrivaled Range and Deployment-Scale

Product photography for the Inpixon nanoANQ Chirp PCB RTLS anchor.

The Inpixon nanoANQ Chirp PCB is an integration ready RTLS anchor circuit board for large-scale tracking use cases. With full time difference of arrival (TDoA) support, this printed circuit board offers a reduced footprint and allows users to expand existing installations with ease.

With unparalleled long ranges of up to 500 meters at 1 meter accuracy, the 2.4 GHz Chirp RF anchor generates and captures high precision location information and communicates sensor and context data while remaining synchronized with your whole RTLS network.

Get a Quote Technical Specifications

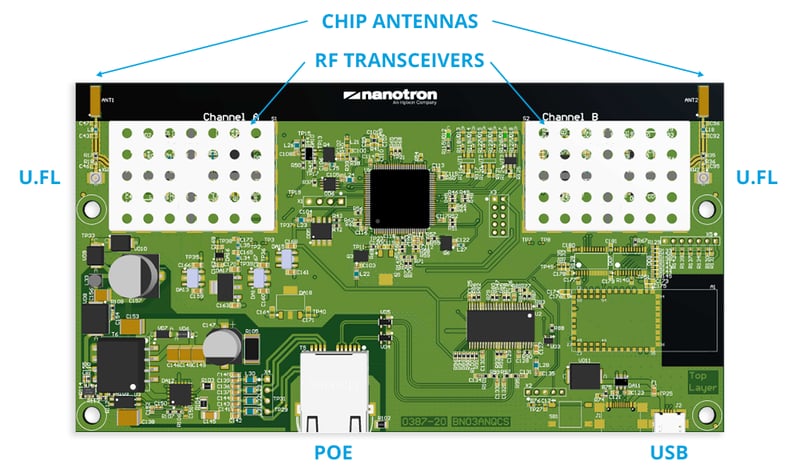

The Inpixon nanoANQ Chirp PCB RTLS anchor includes chip antennas, RF transceivers, U.FL connectors, ethernet, and USB ports.

Key Benefits

Virtual Synchronization

Complete over-the-air (OTA) infrastructure sync without extra pacer nodes.

Adjustable Power Amplifier

Configurable RF output power from -17 to +20 dBm.

3 In 1

Enable concurrent tracking, ranging and data communication in a single RTLS solution.

Inpixon nanoANQ Chirp PCB Highlights

Integration Ready

Available as a printed circuit board assembly, the Inpixon nanoANQ Chirp PCB can be integrated into your own housing with individual antennas connected via U.FL connector or by using the integrated chip antennas.

Configuration

Easy to install and maintain, the Inpixon nanoANQ Chirp PCB anchor is remotely configurable via standard UDP connection and features a power amplifier that is adjustable from -17 to +20 dBm for extended range and different antenna options.

Scale On Demand

Expand as needed to support large-scale tracking use cases. Effortlessly scale deployments by adding additional anchors at any time without compromising accuracy, real-time capability, or throughput.

Temperature Range

The Inpixon nanoANQ Chirp PCB offers industry grade temperature protection from -40°C to +85°C for extreme indoor and outdoor environments.

Two Radio Channels

The Inpixon nanoANQ Chirp PCB is equipped to support two independent configurable RF channels to provide antenna redundancy for superior communication reliability and anchor density optimization or multi-path mitigation (diversity). Alternatively, use with directional antennas offer distinct tunnels or corridors via U.FL connector.

Two-Way Communication

Through its air interface, the Inpixon nanoANQ Chirp PCB RTLS anchor supports bidirectional payload exchange to and from the location engine server and individual tags. Anchors send and receive commands, locations and sensor data between anchors and tags.

Certified

The Inpixon nanoANQ Chirp PCB is CE-RED, FCC and ISED certified.

Technical Specifications

Signal Detection Rate
up to 900 blinks/second
Number of RF Channels
2
Typical Range
up to 300 - 500 m (1)
Typical Location Accuracy
1m (2)
RF Technology
Chirp Spread Spectrum (CSS)
RF Output Power
Configurable -17 to +20 dBm
Receive Sensitivity (80MHz/1μs)
-89 dBm
Transport Network
Ethernet 100 base TX
Power Supply
PoE (802.3af), micro-USB-B
IP Address
DHCP, Static
Operating Temperature range
-40 to +85 °C
Dimensions
154 x 83 mm
Weight
apx 57 g

1 LOS conditions. Results vary depending on environment
2 90%, 1-hour static, 10m distance, RSSI -65 dBm

nanoANQ-Chirp-PCB-top

Dimensions 154 x 83 mm
