AssetTAG Compact

Versatile Tracking Tag for Industrial-Grade Deployments

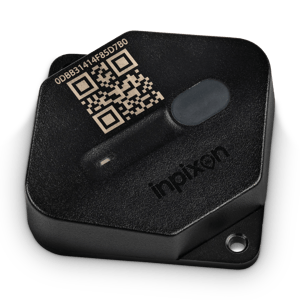

asset-tag-compact

The AssetTAG Compact is a durable ultra-wideband (UWB) asset tracking tag that enables real-time location tracking in RTLS environments with ±40 cm accuracy. Featuring an RGB LED indicator and programmable button on the face of the tag, this tag is both versatile and robust and allows businesses to track critical assets throughout large facilities.

With an adjustable blink rate and long battery life, the AssetTAG Compact is ideal for load carriers, equipment tracking, KLT tracking, JIT/JIS container tracking, cages, boxes, skids, mobile robots, automated guided vehicles (AGV), FIFO management, dock leveler management, yard management applications and more.

Get a Quote Technical Specifications

Key Benefits

Precision Accuracy

Pinpoint UWB RF technology with up to 50m range at ±40 cm accuracy.

Industrial-Grade

With a compact form factor, its silicon free IP65-certified housing protects against dirt, water, and damage in high-impact environments.

Certified

FCC and CE (RED) certified with silicon free IP65-certified housing to protect against dirt, water, and damage.

AssetTAG Compact Highlights

Technical Specifications

Radio Procedure
IEEE 802.15.4-2011 UWB (Ultra-Wideband)
Frequency Range
UWB Channel 5 (6.4GHz)
Transmitting Power
0.037mW (-41.3 dBm/MHz)
Antenna
Omnidirectional integrated antenna (max. 50m range)
Sensors
3-axis accelerometer and integrated temperature sensor
Supply Voltage
3.6V DC Lithium (TC), Type: Ultralife UHE-ER26500-H
Operating Time (at 20°C)
Standby up to 10 years, 6 years with typical use, 3 years at 1Hz with motion standby
Protection Class
IP65
Dimensions
Approximately 67 x 64 x 23.6 mm
Weight
Approximately 60 g
Temperature Range
-15°C to +60°C

asset-tag-compact-side
Dimensions 67 x 64 x 23.6 mm
